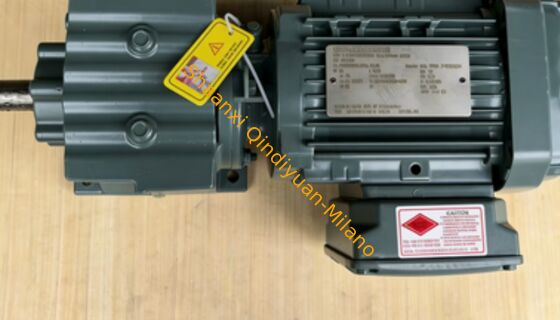

German SEW gearbox DRS71S4 DRE80S4 DT56M4 SEW DRS71S4 0.37kW 4-Pole Three-Phase Motor | Original SEW DRS Series Standard Motor

I. Core Product Information

1. Model Analysis

DRS: Standard Efficiency Three-Phase Asynchronous Motor (IE1 Grade)

71: Frame Size (71mm Center Height)

S: Short Shaft

4: 4 Pole (Synchronous Speed ​​1500rpm/50Hz)

2. Key Technical Parameters

Power: 0.37 kW (0.5 HP)

Frequency: 50 Hz

Speed: 1380 rpm (50Hz)

Voltage: 220-242V Δ / 380-420V Y

Current: 2.15 A (Δ) / 1.23 A (Y)

Number of Phases: 3 Phases

Insulation Class: F (155°C)

Protection Class: IP54 (Dustproof and Splashproof)

Mounting Type: B3 (Foot) / B5 (Flange)

Service Factor: 1.0

Duty Cycle: S1 (Continuous)

Weight: Approx. 6.5 kg

3. Product Features
Standard IE1 Energy Efficiency: Economical and practical, meeting general operating conditions
Compact and Reliable: Cast aluminum housing, robust and durable, suitable for long-term operation
Low Noise and Low Vibration: Precision balanced rotor for smooth operation
High Versatility: Compatible with all SEW reducers (R37/S47/W20, etc.)
Multi-Voltage Adaptability: Supports major global industrial power grids
Flexible Installation: Multiple mounting options including foot mounting and flange mounting

4. Typical Applications
Conveyor Lines, Conveyor Belts, Small Mixers
Packaging Machinery, Textile Machinery, Food Machinery
Automated Production Lines, Warehousing and Logistics Equipment
