Home /Products/Programmable Logic Controller PLC/Siemens 6SL3210-5FB11-5UA0 Servo Drive 1.5 KW 3 Phase 200-240 V AC Input IP20 Frame Size D

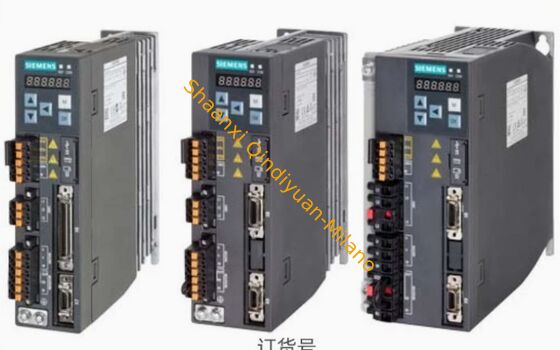

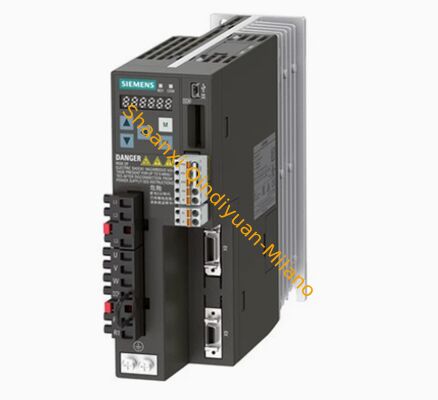

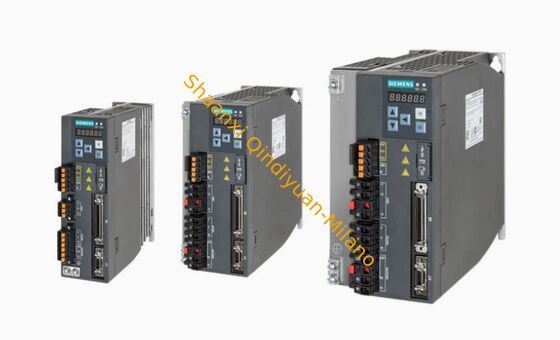

Siemens 6SL3210-5FB11-5UA0 Servo Drive 1.5 KW 3 Phase 200-240 V AC Input IP20 Frame Size D

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-5FB11-5UA0 Servo Drive 1.5 KW 3 Phase 200-240 V AC Input IP20 Frame Size D
Features Gallery Product Description Chat Now
Features
Specifications
Supply Voltage Type: AC
SafetyFeatures: Supports Safety-rated I/O And Functions
Color: Normal
ProgrammingLanguage: Ladder Logic, Function Block, Structured Text
Actual Price: Negotiabled
CommunicationProtocols: Ethernet/IP, Modbus, Profibus, DeviceNet
Output Typt: Relay
NumberOfI/OPoints: From A Few To Several Thousand
Output Points: 16DO
ApplicationAreas: Industrial Automation, Manufacturing, Process Control
Condition: New Original With Sealed
Part Type: Sysmac CPM2A
MemoryCapacity: Varies By Model, Typically 16KB To 1MB
Output Method: Transistor
OperatingTemperature: -20°C To 60°C
Highlight:

Siemens servo drive 1.5 kW

,

3 phase servo drive IP20

,

PLC servo drive Frame Size D
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB11-5UA0
Document: A700000007588102.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Siemens 6SL3210-5FB11-5UA0 Servo Drive, 1.5 kW, 3-phase 200-240 V AC input, IP20, Frame Size D
Product Overview
Product Series SINAMICS V90
Order Number 6SL3210-5FB11-5UA0
Product Status Active
Frame Size D
Cooling Type Natural Convection (Internal)
Electrical Specifications
Input Voltage 200-240 V 3-phase AC (-15% / +10%)
Input Frequency 45-66 Hz
Rated Input Current 11.0 A
Control Supply Voltage 24 V DC (20.4-28.8 V DC)
Rated Output Power 1.5 kW
Rated Output Current (I_N) 10.6 A
Peak Output Current (I_max) 31.8 A (for 3 sec)
Output Frequency 0-330 Hz
Interfaces & Communication
PROFINET Interface 1 port (Standard)
Encoder Interface 1 port (supports incremental encoders)
Digital Inputs 6
Digital Outputs 3
Analog Inputs 2 (0-10 V / 4-20 mA)
Analog Outputs 1 (0-10 V / 4-20 mA)
RS-485 1 port (for Modbus RTU)
Safety Functions
  • Safe Torque Off (STO) - PL d, Cat. 3, SIL 2
  • Safe Stop 1 (SS1)
  • Safe Brake Control (SBC)
Mechanical Specifications
Width (W) 95 mm
Height (H) 170 mm
Depth (D) 195 mm
Weight Approx. 3.5 kg
Mounting DIN Rail or Screw Mounting
Protection Class IP20 (Front/Rear)
Environmental Conditions
Operating Temperature 0°C to +55°C (derating above 40°C)
Storage Temperature -25°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 2000 m above sea level (no derating)
Shock Resistance 15 g (11 ms, half-sine)
Vibration Resistance 1 g (5-2000 Hz)
Certifications & Standards
  • CE Mark
  • UL Certification (cULus)
  • CSA Certification
  • C-TICK (RCM)
  • EAC Certification
  • RoHS Compliance
Control Modes
  • Position Control (via PROFINET/PTO)
  • Velocity Control
  • Torque Control
  • Point-to-Point Motion
