Home /Products/Programmable Logic Controller PLC/Siemens 6ES7232-0HB22-0XA8EM 232 Analog Output Module For S7-22X CPU Only 2 Analog Outputs 12 bit Converter

Siemens 6ES7232-0HB22-0XA8EM 232 Analog Output Module For S7-22X CPU Only 2 Analog Outputs 12 bit Converter

1PCS
MOQ
Negotiable
Price
Siemens 6ES7232-0HB22-0XA8EM 232 Analog Output Module For S7-22X CPU Only 2 Analog Outputs 12 bit Converter
Features Gallery Product Description Chat Now
Features
Specifications
Number_of_Inputs: 14
Number_of_Outputs: 10
Condition: New Original With Sealed
Point: 14 (8DI+6DO)
Color: Normal
Mpu Points: 12 (8DI + 4DO)
Dimensions: 90mm X 100mm X 75mm
Part No: CT200 D3 84564
Input Points: 28
Application: Oil And Gas Factory
Model: S7-1200
Output_Type: Relay
Operating_Temperature_Range: -20°C To 60°C
Output Method: Relay
Input_Voltage: 24V DC
Highlight:

Siemens Analog Output Module

,

6ES7232-0HB22-0XA8EM

,

Analog Output Module 12 bit
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7232-0HB22-0XA8
Document: 6ES7232-0HB22-0XA8.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 100PCS 1WEEK
Product Description

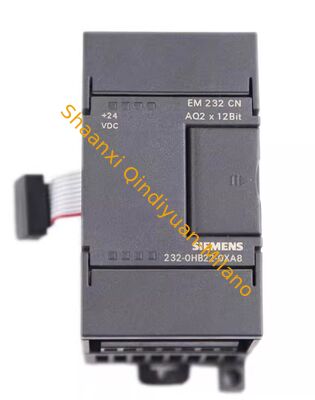

Siemens 6ES7232-0HB22-0XA8 EM 232 Analog Output Module
Designed specifically for S7-22X CPU systems, this analog output module provides 2 configurable channels with high-precision voltage (±10V DC) or current (0-20mA) output capabilities.
Product Overview
Parameter Specification
Product Series SIMATIC S7-200 CN
Order Number 6ES7232-0HB22-0XA8
Module Type Analog Output Module (EM 232)
Product Status Spare part
Certification CE approval only (S7-200 CN product)
Electrical Specifications
Supply Voltage
24 V DC (-15% / +20%)
Power Consumption
Typical 2 W
Channel Isolation
1500 V RMS
Module-to-Bus Isolation
1500 V RMS
Analog Output Specifications
Parameter Specification
Number of Outputs 2 channels
Output Types Voltage (±10 V DC) or Current (0-20 mA) selectable
Resolution Voltage: 12-bit (including sign), Current: 11-bit (unipolar)
Data Word Format Voltage: -32000 to +32000, Current: 0 to +32000
Output Accuracy ±0.5% of full scale
Conversion Time Per channel: typical 250 μs
Load Capacity Voltage: ≤1 kΩ impedance; Current: max 500 Ω continuous, 1 kΩ peak
Output Range Voltage: ±10 V DC; Current: 0-20 mA (4-20 mA configurable)
Environmental & Mechanical Specifications
Operating Temperature
-25°C to +70°C (-13°F to 158°F)
Storage Temperature
-40°C to +85°C (-40°F to 185°F)
Relative Humidity
10% to 95% RH (non-condensing)
Protection Class
IP20 (for cabinet installation)
Dimensions
46 * 80 * 62 mm (1.81 * 3.15 * 2.44 in)
Net Weight
Approx. 0.2 kg (0.44 lb)
Mounting Type
DIN rail mounting or direct mounting to S7-200 CPU
Conductor Cross-section
0.5-2.5 mm² (AWG 20 to AWG 14)
Additional Features
Calibration
Automatic calibration via CPU
Diagnostics
Overload and short-circuit protection for outputs
Compatibility Note: This module is designed exclusively for use with S7-22X series CPUs only.
