Siemens 6AV6642-0AA11-0AX1 SIMATIC Touch Panel TP 177A HMI Touch Panel

1pcs
MOQ
Negotiable
Price
Siemens 6AV6642-0AA11-0AX1 SIMATIC Touch Panel TP 177A HMI Touch Panel
Features Gallery Product Description Chat Now
Features
Specifications
Number_of_Outputs: 10
Mounting_Type: DIN Rail
Dimensions: 90 X 60 X 75 Mm
Input_Voltage: 24 V DC
Points: 40 (24DI+16DO)
Power_Consumption: 5 W
Condition: New Original With Sealed
Output Points: 16DO
CPU_Speed: 100 MHz
Actual Price: Based On Offer
Part No: D4-16TR
Memory: 50 KB
Supply Voltage Type: AC
Color: Normal
Input Points: 36 Points.
Highlight:

Siemens SIMATIC TP 177A HMI panel

,

6AV6642-0AA11-0AX1

,

PLC compatible HMI touch panel
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6642-0AA11-0AX1
Document: 6AV6642-0AA11-0AX1.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

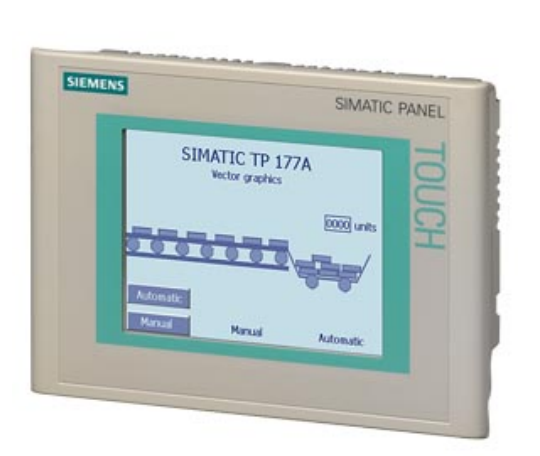

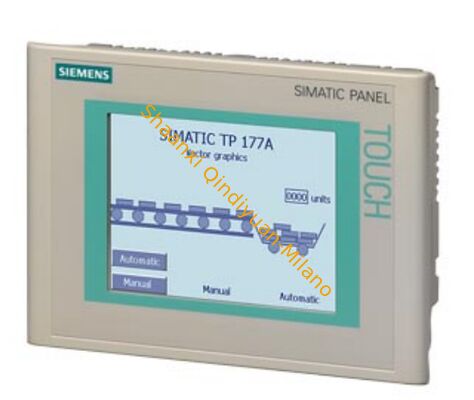

Siemens SIMATIC TP 177A Touch Panel
• 5.7-inch monochrome STN display with blue mode illumination
• 320 x 240 QVGA resolution with 4-level backlight control
• MPI/PROFIBUS-DP communication interface
• IP65 front protection for harsh industrial environments
• 512 KB user data memory with ARM processor
Product Overview

The Siemens 6AV6642-0AA11-0AX1 SIMATIC TP 177A is a compact HMI touch panel designed for industrial automation applications. This spare part unit features a robust construction with front panel IP65 protection, making it suitable for demanding manufacturing environments.

Technical Specifications
Model Number 6AV6642-0AA11-0AX1
Product Type HMI Touch Panel
Status Spare Part
Display Size 5.7 inches
Display Type Monochrome STN with blue mode illumination
Resolution 320 x 240 pixels (QVGA)
Backlight Levels 4 levels of blue backlight
User Data Memory 512 KB
Communication Interface MPI/PROFIBUS-DP (RS-485)
Max Communication Rate 1.5 Mbit/s
Power Supply 24 V DC (18-30 V DC range)
Power Consumption 6 W
Protection Class IP65 (front), IP20 (rear)
Operating Temperature 0°C to +50°C
Physical Dimensions
Front Dimensions (WxH): 212 mm x 156 mm
Cutout Dimensions (WxH): 198 mm x 142 mm
Depth: 44 mm
Weight: 0.75 kg (1.65 pounds)
Configuration & Software

Compatible with WinCC flexible 2004 Compact HSP and higher versions. Open source software is included free of charge for configuration and operation.

Interface Details
SD Card Slot: No
USB Interface: No
Ethernet Interface: No
