Siemens 6EP1331-5BA10 SITOP PSU100C 24 V / 1.3 A Stabilized Power Supply

1
MOQ
Negotiable
Price
Siemens 6EP1331-5BA10 SITOP PSU100C 24 V / 1.3 A Stabilized Power Supply
Features Gallery Product Description Chat Now
Features
Specifications
Part No: D2-32TD1
Memory: 512 KB
Output_Type: Digital And Analog
Mpu Points: 12 (8DI + 4DO)
Output Typt: Relay
Manufacturer: Siemens
Operating_Temperature: -20°C To 60°C
Points: 40 (24DI+16DO)
Color: Normal
Supply Voltage Type: AC
Application: Spinning Machine, Conveyer Belt
Communication_Protocols: Ethernet, Profibus, Modbus
CPU_Speed: 100 MHz
Output Points: 24 Points.
Highlight:

Siemens SITOP PSU100C

,

24V 1.3A stabilized power supply

,

Siemens 6EP1331-5BA10
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6EP1331-5BA10
Document: 6EP1331-5BA10.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

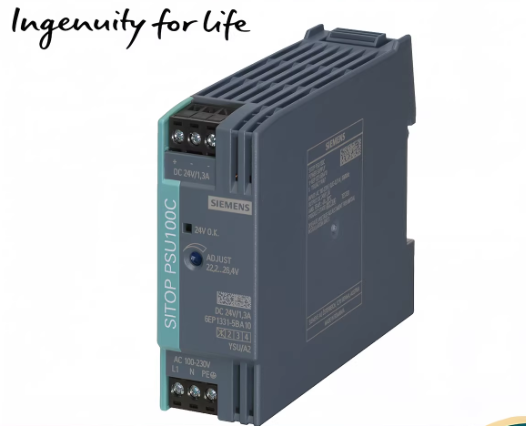

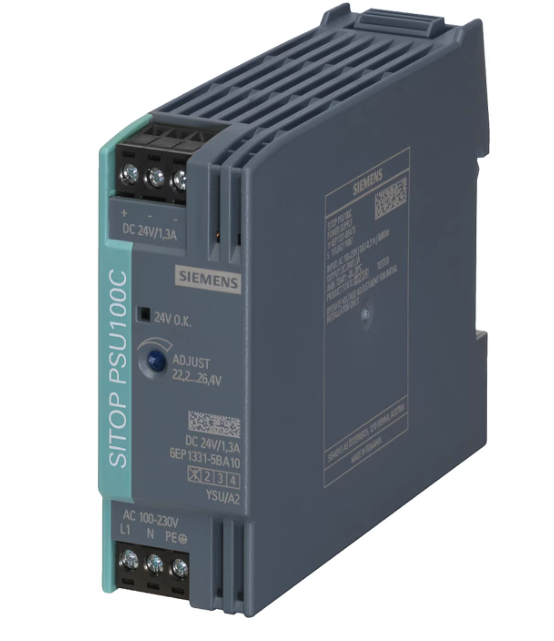

Siemens SITOP PSU100C 24V/1.3A Stabilized Power Supply
Order Number
6EP1331-5BA10
Output Power
30 W (typical), 31.2 W (maximum)
Product Lifecycle
Active (PM300)
Electrical Specifications
Parameter Specification
Input Voltage Range 120-230 V AC (85-264 V AC), 110-300 V DC
Output Voltage 24 V DC (adjustable: 22.2-26.4 V DC)
Output Current 1.3 A (nominal), 3.1 A (short-term overload)
Mains Frequency 47-63 Hz (AC input)
Efficiency 86% (at full load, typical)
Output Noise Maximum 200 mV (peak-to-peak)
Protection & Safety Features
  • Electronic overload protection with automatic restart
  • Short-circuit protection with automatic restart
  • Built-in overvoltage protection (output side)
  • Reverse polarity protection (input side)
  • Power LED indicator for visual status monitoring
  • Parallel switching capability (up to 2 units)
Mechanical Specifications
Mounting Method
35 mm standard DIN rail mounting
Dimensions (W*H*D)
45 mm * 125 mm * 100 mm
Weight
Approx. 0.3 kg (0.66 lb)
Protection Rating
IP20 (front face)
Connection Type
Screw terminals for 0.2-2.5 mm² wires
Environmental Specifications
Parameter Specification
Operating Temperature -20 °C to +70 °C (-4 °F to 158 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to 185 °F)
Relative Humidity 5% to 95% non-condensing
Vibration Resistance 5 g (10-500 Hz)
Altitude Rating 0 to 2000 m without derating
Certifications & Compliance
  • EMC Compliance: EN 61000-6-2, EN 61000-6-4
  • Safety Certification: CE, UL, cUL, RoHS compliant
  • Protection Class: IP20, SELV/PELV compliant
  • Safety Standards: IEC 61558-1, IEC 61558-2-16, UL 508
Key Features
  • Highly stabilized output voltage with low ripple and noise
  • Universal input voltage (AC/DC) for global applications
  • Compact DIN rail design with 45 mm width
  • Output voltage adjustable via potentiometer
  • Supports hot swapping with proper safety precautions
  • Fully compatible with Siemens industrial automation systems
  • Engineering support via Siemens TIA Portal
