Home /Products/Programmable Logic Controller PLC/Siemens 6ES7136-6BA01-0CA0 SIMATIC DP Electronic Module for ET 200SP, F-DI 8x 24 V DC HF

Siemens 6ES7136-6BA01-0CA0 SIMATIC DP Electronic Module for ET 200SP, F-DI 8x 24 V DC HF

1
MOQ
Negotiable
Price
Siemens 6ES7136-6BA01-0CA0 SIMATIC DP Electronic Module for ET 200SP, F-DI 8x 24 V DC HF
Features Gallery Product Description Chat Now
Features
Specifications
Mounting_Type: DIN Rail
Dimensions: 100 Mm X 75 Mm X 60 Mm
Output Points: 16DO
Actual Price: Negotiabled
Actual Value: Negotiabled Price
CPU_Speed: 100 MHz
Manufacturer: Siemens
Point: 14 (8DI+6DO)
Number_of_I/O_Points: 50
Power Supply Voltage: 100 – 240VAC.
Supply Voltage Type: AC
Output_Type: Digital And Analog
Output Typt: Relay
Color: Normal
Application: Oil And Gas Factory
Highlight:

Siemens SIMATIC DP electronic module

,

ET 200SP F-DI 24V DC module

,

6ES7136-6BA01-0CA0
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7136-6BA01-0CA0
Document: A700000009140341.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 100pcs 1week
Product Description

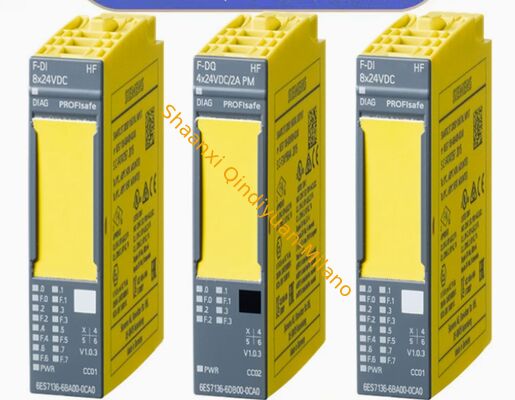

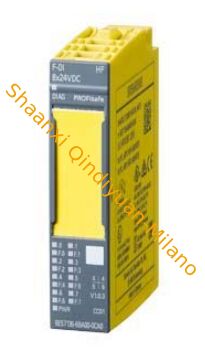

SIMATIC DP Electronic Module for ET 200SP, F-DI 8x 24 V DC HF
High-performance 8-channel fail-safe digital input module designed for safety-critical applications in industrial automation systems.
Product Overview
Order Number 6ES7136-6BA01-0CA0
Product Series Siemens SIMATIC ET 200SP Distributed I/O System
Module Type 8-channel Fail-Safe Digital Input (F-DI) High Feature (HF)
Replaced Model 6ES7136-6BA00-0CA0 (previous generation)
Electrical Specifications
Supply Voltage 24 V DC (operating range: 19.2 V DC - 28.8 V DC)
Input Voltage 24 V DC (standard for industrial sensors)
Input Type Sinking/sourcing (universal input, 2-wire/3-wire sensors)
Input Current Typ. 4 mA @ 24 V DC (state "1")
Response Time (HF) 0.1 ms (typical, high-speed input)
Permitted Input Voltage Range -30 V DC to +30 V DC
Safety Specifications
Safety Integrity Level SIL 3 (per IEC 61508)
Performance Level PL e (per ISO 13849-1)
Safety Category Category 4 (per ISO 13849-1)
Mean Time To Failure (MTTFd) 7.2 x 10⁹ h (per IEC 61508)
Safety Function Fail-safe signal acquisition, emergency stop detection, safety interlock control
Mechanical & Environmental Specifications
Module Width 15 mm (ET 200SP standard base unit width)
Dimensions (W*H*D) 15 mm * 73 mm * 58 mm (0.59 in * 2.87 in * 2.28 in)
Net Weight Approx. 0.04 kg (0.09 lb)
Protection Rating IP20 (front face, when installed in ET 200SP station)
Operating Temperature 0 °C to 60 °C (32 °F to 140 °F); vertical installation max. 50 °C
Connection Type Spring-type terminals (push-in, tool-free wiring)
Key Features & Capabilities
  • High-speed input for fast signal acquisition (0.1 ms response time)
  • Channel-level open-wire/short-circuit diagnosis and module fault self-diagnosis
  • Cross-circuit detection for enhanced safety monitoring
  • Supports hot swap of ET 200SP modules with proper operation
  • Compatible with ET 200SP safety-related system redundancy
  • Individual channel parameterization (delay time, filter settings)
  • Real-time process data and diagnostic data transfer via PROFIsafe
  • Built-in reverse polarity protection for 24V DC supply and inputs
Certifications & Compliance
EMC Compliance EN 61131-2, EN 61000-6-2, EN 61000-6-4
Safety Certification CE, UL, cUL, ATEX, IECEx
RoHS Compliance Yes (lead-free components)
Industry Standards IEC 61508, ISO 13849-1, IEC 61131-2
System Integration
Compatible Base Unit ET 200SP BU type base units (e.g., 6ES7193-6BP00-0BA0)
Engineering Software TIA Portal V13 and above (with Safety Advanced option)
PROFIsafe Protocol Compliant (for fail-safe communication over PROFINET/PROFIBUS)
Mounting Method 35 mm standard DIN rail mounting (TS 35/7.5, TS 35/15)
