SIEMENS 6ES7211-1BE40-0XB0 SIMATIC S7-1200 CPU 1211C AC/DC/Relay

1
MOQ
Negotiable
Price
SIEMENS 6ES7211-1BE40-0XB0 SIMATIC S7-1200 CPU 1211C AC/DC/Relay
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

SIEMENS S7-1200 PLC CPU 1211C

,

SIMATIC S7-1200 AC/DC/Relay

,

6ES7211-1BE40-0XB0
Basic Infomation
Place of Origin: Germany/China
Brand Name: Siemens
Model Number: 6ES7211-1BE40-0XB0
Document: 6ES72111BE400XB0_datasheet_...en.pdf
Payment & Shipping Terms
Delivery Time: 5-8work day
Payment Terms: T/T
Supply Ability: 1-20PCS 1week
Product Description
SIEMENS SIMATIC S7-1200 CPU 1211C AC/DC/Relay
Order Number: 6ES7211-1BE40-0XB0
General Specifications
Full Model Name SIMATIC S7-1200 CPU 1211C AC/DC/Relay
Order Number 6ES7211-1BE40-0XB0
Firmware Version V4.5
Engineering Software TIA Portal V15.1 and above (V18/V20 recommended)
Weight Approx. 0.381 kg

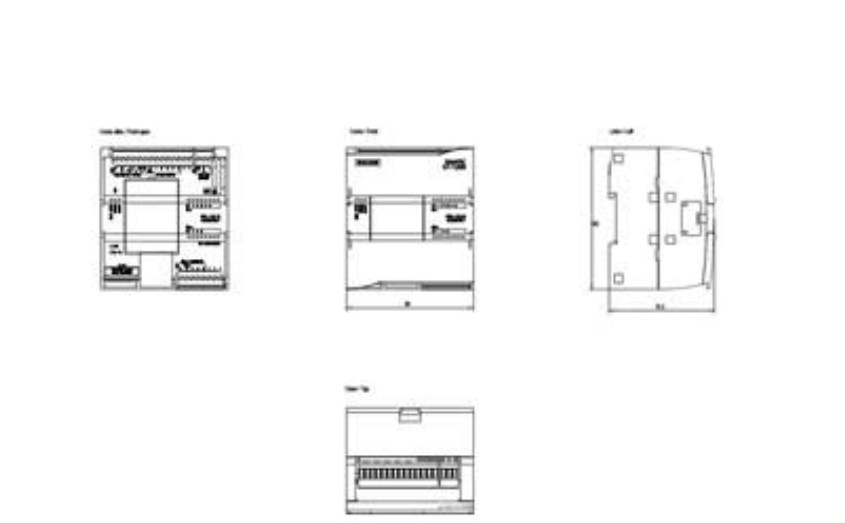

Dimensions (L*W*D) 100*90*75 mm
Mounting Method Standard 35 mm DIN rail mounting
Protection Rating IP20
Power Supply Specifications
Power Input AC 85-264V, 47-63Hz
Input Current 60mA at AC 120V; 30mA at AC 240V
Maximum Input Current 180mA at AC 120V; 90mA at AC 240V
Backplane Bus Current (DC 5V) Max. 750mA
Sensor Power Supply 24V DC, max. 200mA
On-Board I/O Specifications

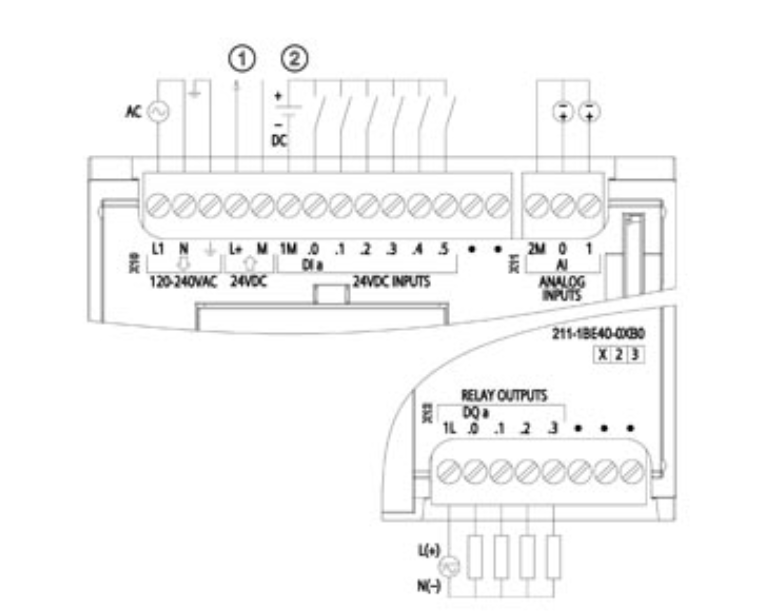

Digital Inputs (DI) 6 channels of 24V DC, 2 switchable to AI; 4mA per channel; 0.2-100ms adjustable response time
Digital Outputs (DO) 4 channels of relay outputs, 2A per channel (AC 250V/DC 30V), I²t=0.8A²*s
Analog Inputs (AI) 2 channels of 0-10V DC, 12-bit resolution, accuracy ±0.5%
Memory and Performance
Program Memory 50KB
Data Memory 50KB
Bit Memory 8192 bits
Timers/Counters 256 each
Boolean Instruction Execution Speed 0.08μs per instruction
PID Controllers Supported, up to 8
Communication Specifications
Communication Interface 1 PROFINET Ethernet port (RJ45)
Supported Protocols TCP/IP, UDP, PROFINET IO, Modbus TCP, etc.
Expansion Capability 1 Signal Board (SB) slot, max. 3 Communication Modules (CM)
Environmental and EMC Specifications
Operating Temperature -20 to 60℃ (horizontal installation); -20 to 50℃ (vertical installation)
Storage Temperature -40 to 70℃
EMC Immunity Electrostatic discharge: 8kV (air discharge), 6kV (contact discharge)
Vibration/Shock Resistance Compliant with IEC 60068-2-6/27 standards
Functional Features
  • Programming Languages: Supports IEC 61131-3 standard languages (LAD, FBD, STL, SCL)
  • Clock Function: Integrated real-time clock, supports time synchronization and timing tasks
  • Diagnostic Function: Real-time monitoring of I/O status, communication status, etc.
  • Data Management: Supports data logging, recipe management for small-scale automation
